Schaller
Schaller Germany Megaswitch 5-Way Toggle MODEL E+ - 15310005
Out of stock
Regular price
$29.99
$29.99
Sale price
Regular price
Description

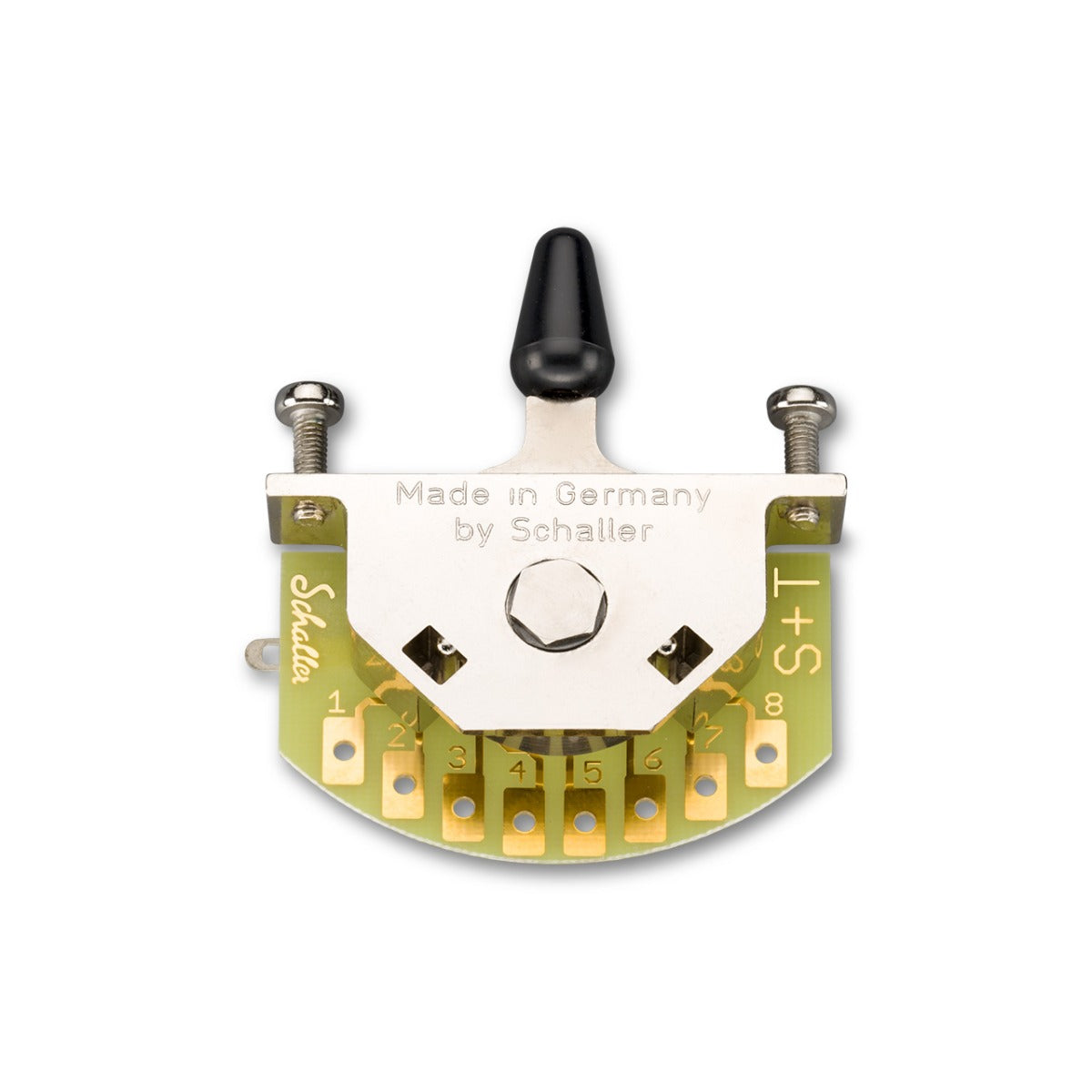

Best materials, extremely rugged metal housings and super solid moving parts with gold-plated conducting paths ensure perfect sound, superb functionality and a long service life. Manufactured for extreme precision: Snaps cleanly into all switch positions.
With simple installation and a lot of flexibility, these switches substantially broaden the range of possible sounds on electric guitars. They allow coil combinations on the pickups which are impossible to create using conventional standard switches.
Only the best materials for our production
- sturdy metal housing
- high-strength and movable parts
- gold-plated conductor tracks on the circuit board, which guarantee perfect sound transmission
- precise engagement in all switch positions
- optimal function for a long life
Technical specifications
- Weight: 34 g
- Button size: 3.6 x 1.4 mm

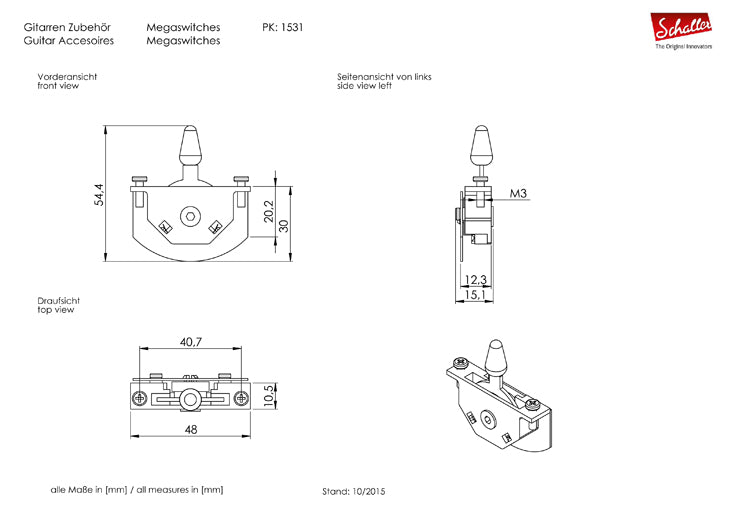

- Dimension (w x h x d): 48 x 54.4 x 15.1 mm
- Distance between mounting screws Control Plate: 40.7 mm
- Socket housing depth without switch: 30 mm
- Scope of delivery includes a black switch knob
Key:
S = Fender Stratocaster
T = Fender Telecaster
P = PRS
E = single coil (SC) + humbucker (HB)
E+ = SC + HB in combination
M = all conceivable combinations and variants!
- Model Number: 15310005
- Brand: Schaller
