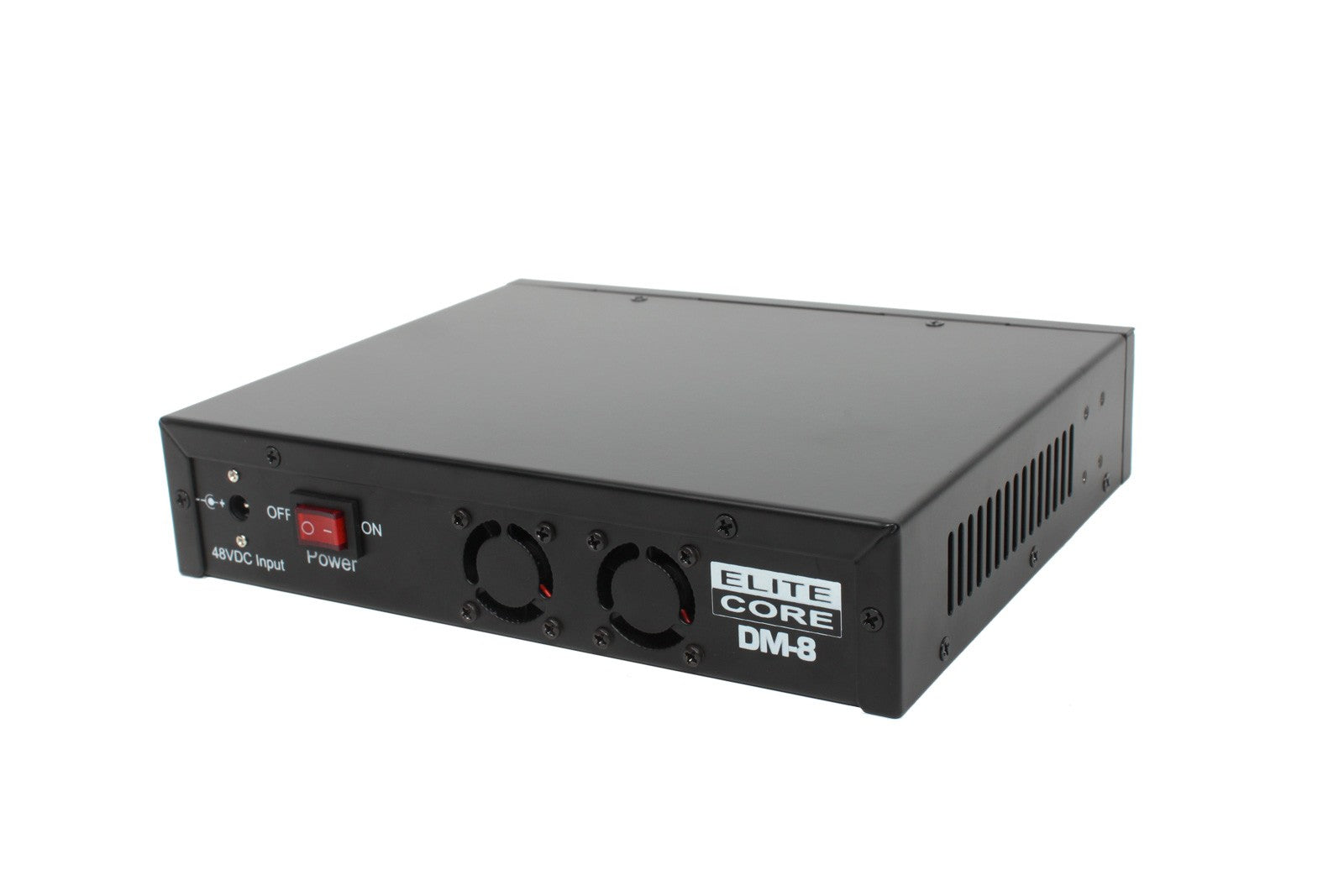

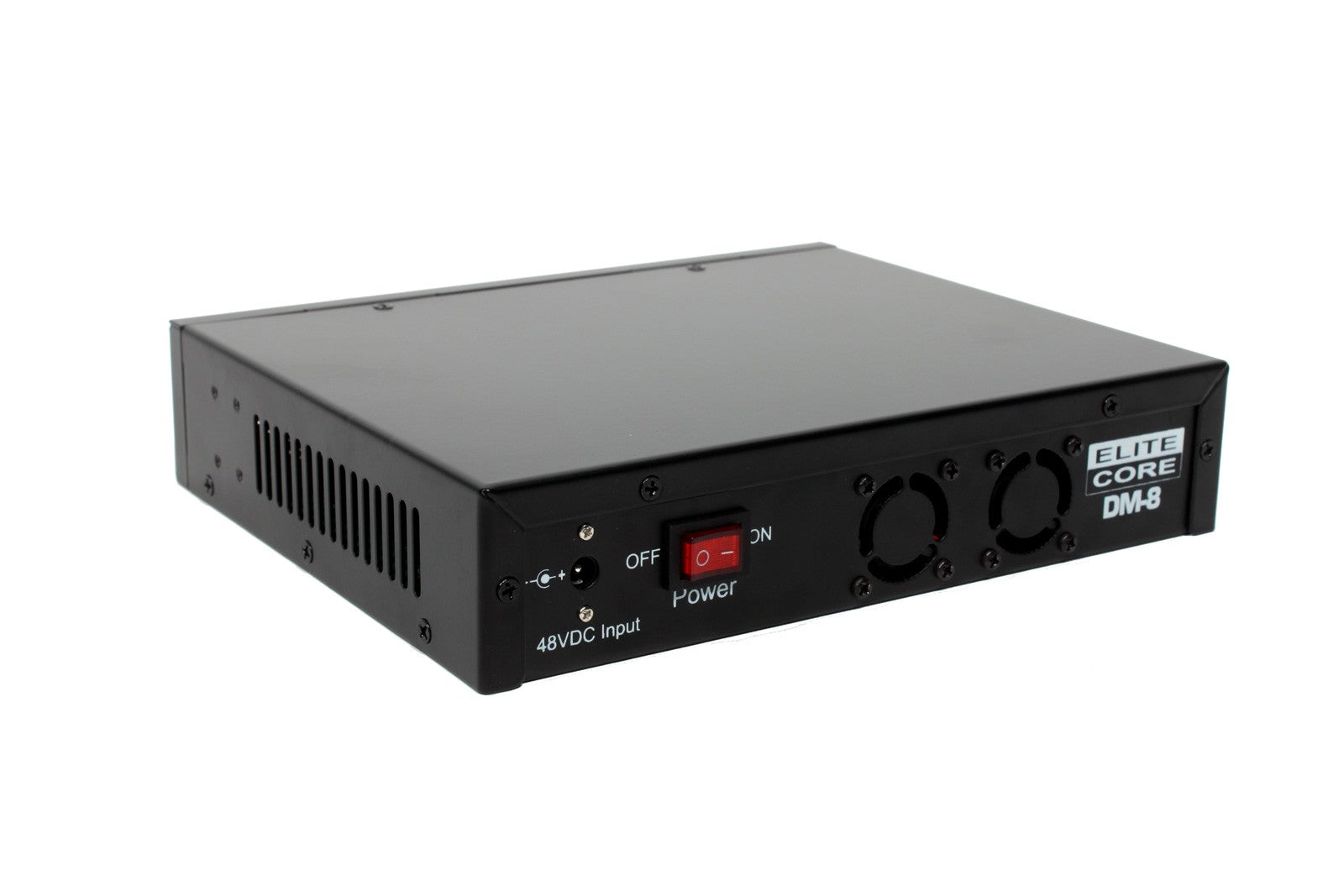

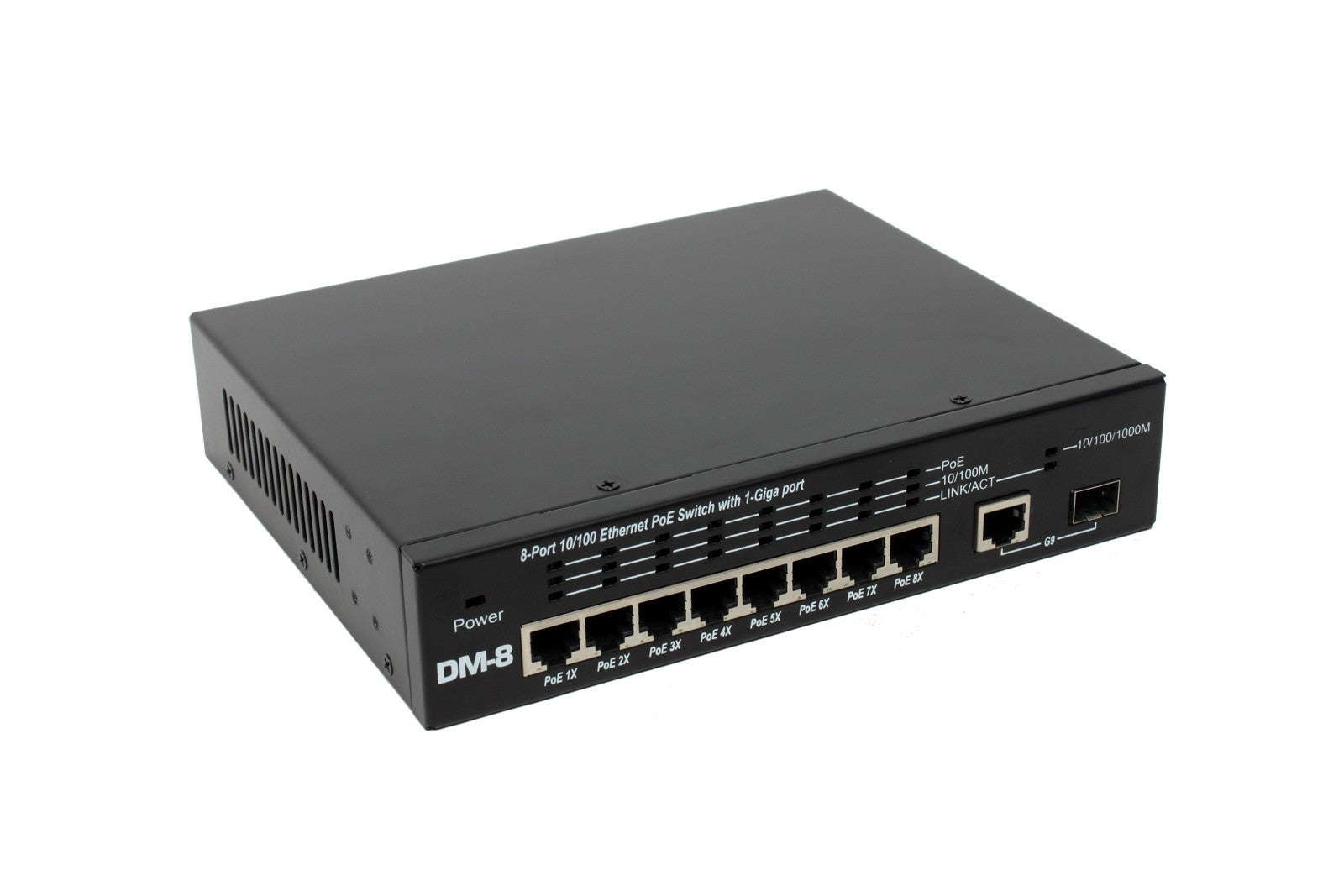

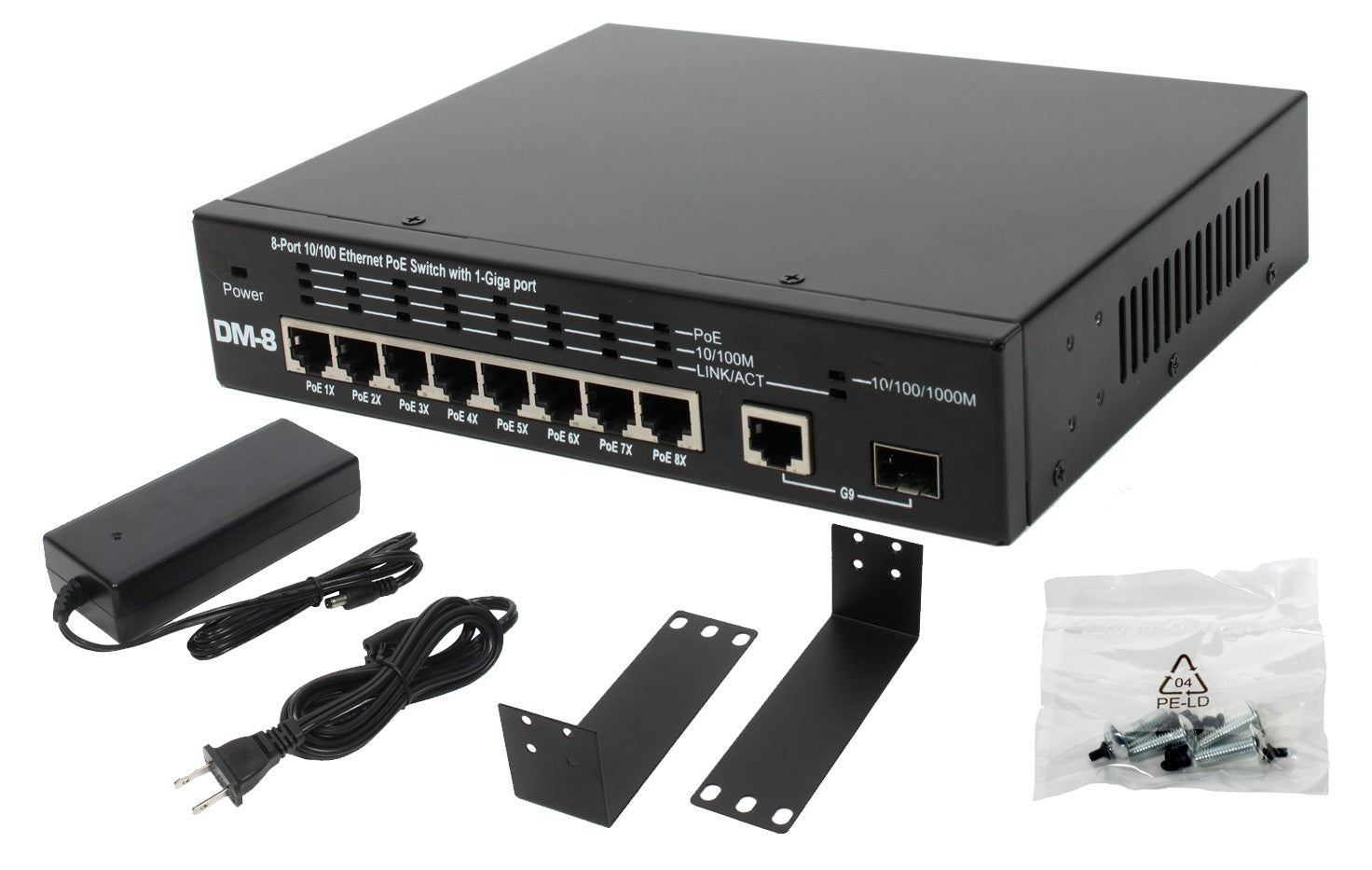

Elite Core DM-8 POE Ethernet 8 Channel Distributor for PM-16 Personal Monitor

Delivers power and audio to up to eight PM-16 Personal Mixers through CAT5e cable. PM-16's connected to the DM-8 do not need a power supply.


Features:

• IEEE 802.3 10Mbps Ethernet

• IEEE 802.3u 100Mbps Fast Ethernet

• IEEE 802.3x Flow Control for Full-Duplex

• IEEE 802.3af Power over Ethernet

• Number of Ports: 10/100Mbps on all eight ports

• Power Over Ethernet: from port 1 to Port 8

• 802.3af 15.4W per port and 112W Max

• PoE Ports Output Voltage Range: 44-57VDC

• MAC Address Table: 1K

• Packet Buffer Memory: 64K Buffer

• 8P8C RJ-45 x 9 supports Shielded (STP) connectors

• PoE power is delivered to the twist-pair pin 1,2 and pin 3,6

• PoE Power: X 8

• PoE Power: Up to 15.4 watts max per port for all ports 1 ¨C 4. Total PoE power 112W max

• 10/100Mbps: x 8 + LAN x 1

• Total Power consumption: 120W max

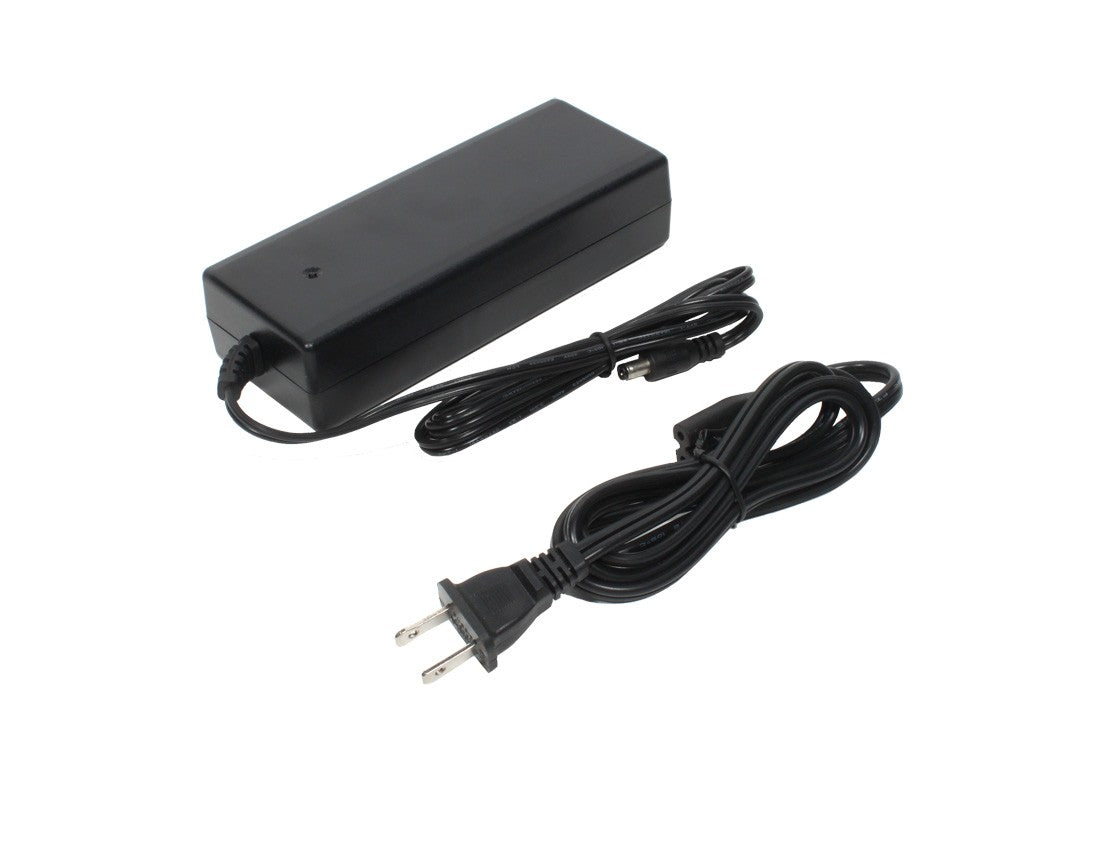

• Power Adaptor: 100-240VAC to 48VDC 2.50A (Included)
