Ibanez EDGE Guitar Tremolo Bridge with 31mm Block, 2ED1R31B - BLACK
Out of stock, more on the way!

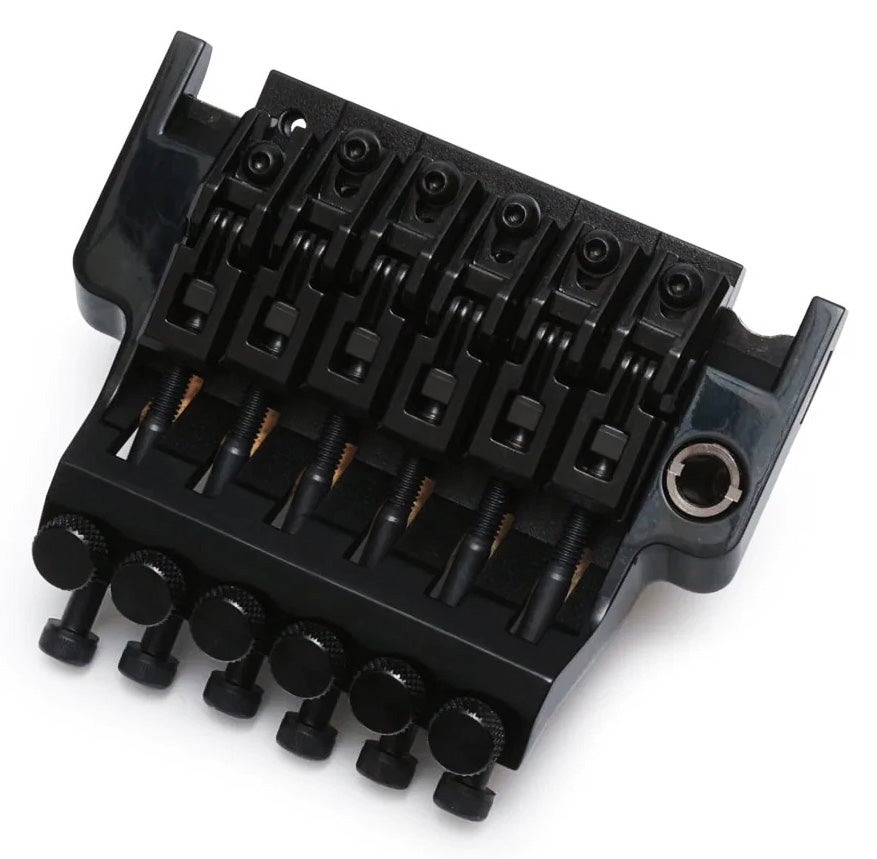

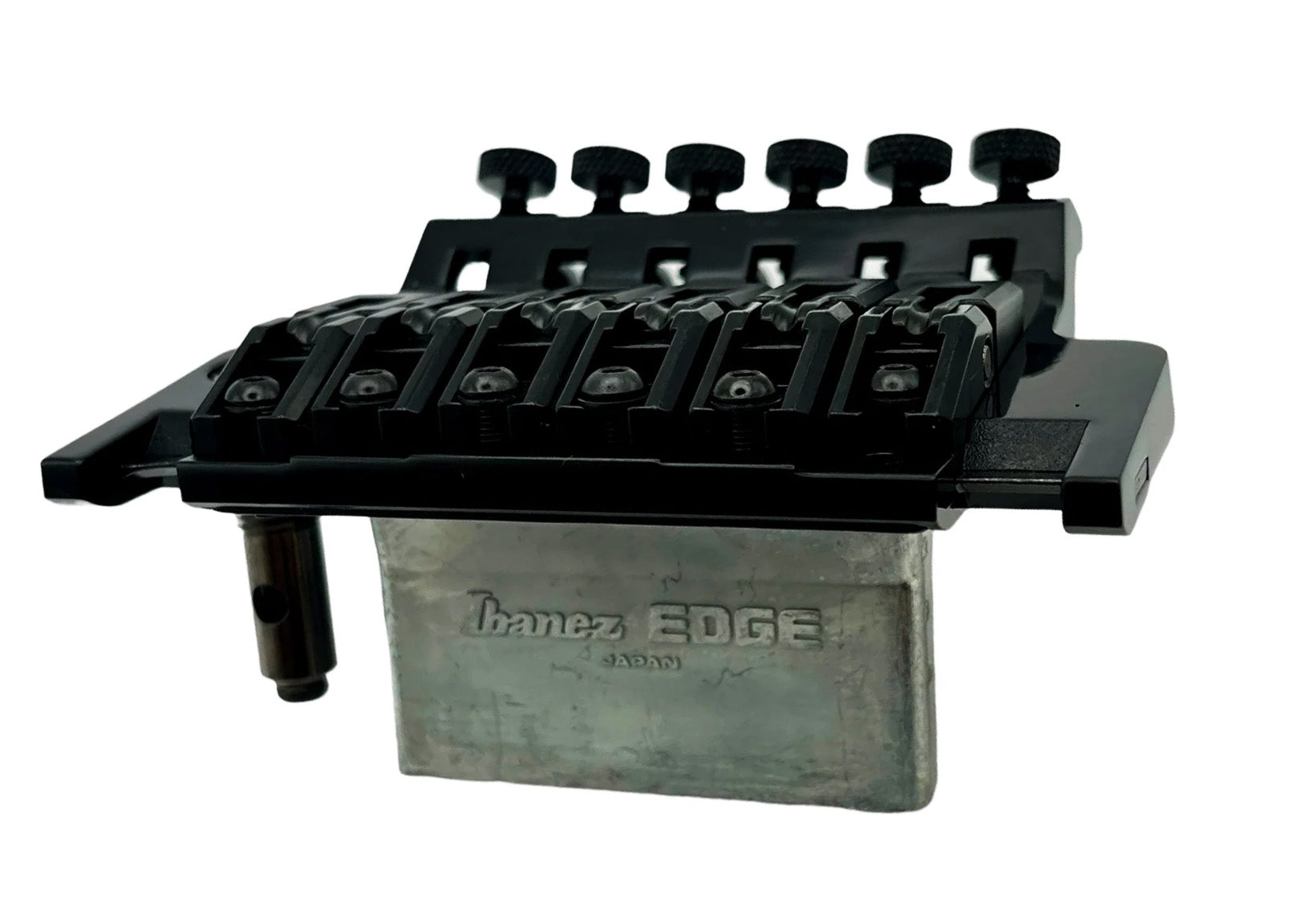

Authenic Ibanez Edge locking tremolo bridge is based on the Floyd Rose tremolo design. It is sometimes referred to as the "Original Edge" to differentiate it from the various versions that have been released since. The Edge is based on the Floyd Rose tremolo; As such it incorporates a double locking design, meaning that the strings are retained at both the bridge and the nut. Key improvements of the Edge design over the original Floyd Rose include replaceable knife edges, a less bulky saddle with fewer sharp edges, more overall mass (to increase sustain), steel sleeves in which to mount the anchor studs and a pop-in arm.
The Edge was designed by Gotoh and originally introduced on Ibanez guitars in 1986, discontinued in 2003 and brought back in 2010. It has been used extensively on many models. This is the current production version.
Features:
- Push-in arm
- rear-positioned fine tuner adjustment
- Locking Mounting Studs
- Fits Right-Handed, 6-string Guitars
- Sustain Block Depth: 31mm

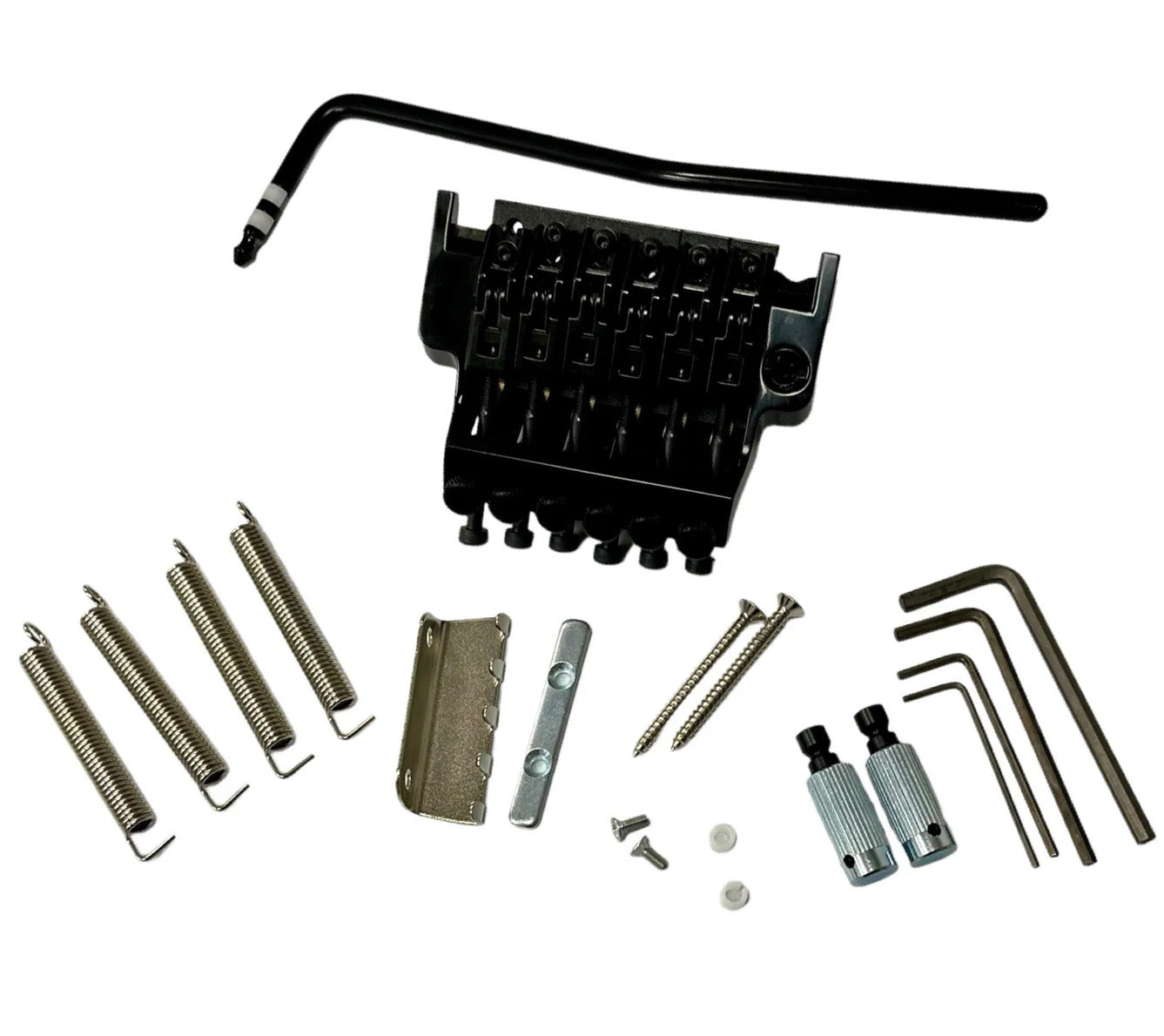

The tremolo kit contains:
- Locking bridge
- Tremolo block
- Whammy bar
- Tremolo springs
- Tremolo claw and screws
- Mounting studs
- Spring retainer bar and screws
- Assorted Allen keys
Specifications:
- Width: 92mm ( 3.622" )
- Length (Includes string block bolt) : 77.5mm ( 3.051" )
- Saddle Width: 10.6mm ( 0.417" )
- String Spacing: 10.9mm ( 0.4285" )
- Trem Block Height w. Retainer Bar: 35mm ( 1.378" )
- Trem Block Width: 52.2mm ( 2.0555" )
- Trem Height Stud Spacing: 73.65mm ( 2.9" )
- Wing Length (Knife edge to rear at longest point) 32.16mm ( 12.665" )
- Model Number: 2ED1R31B
- Brand: Ibanez
