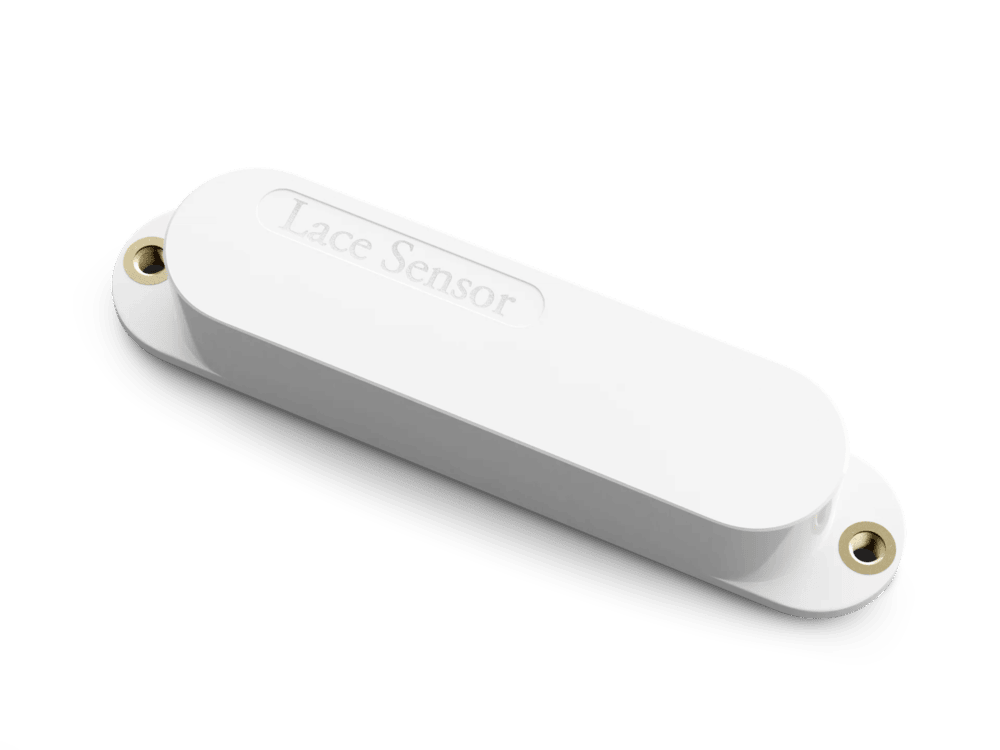

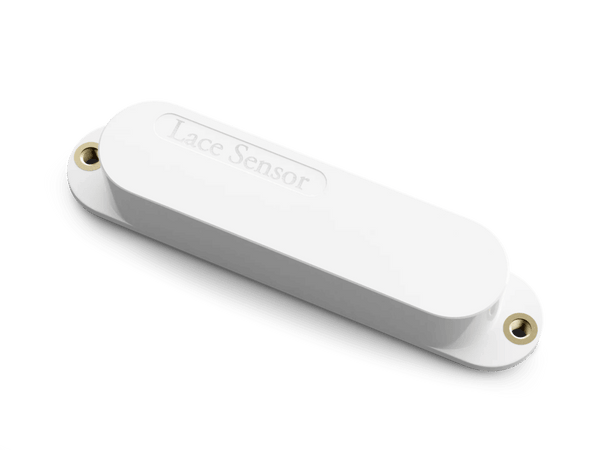

Lace Sensor Silver, Single Coil Pickup, White

Tone / Character:

• The Silver Sensor delivers a “fat 70’s single-coil sound — richer midrange, a bit more output than vintage single coils while retaining clarity.
• It’s especially suited for classic rock, blues, vintage rock & pop styles.
• Some describe its sound as close to Richie Blackmore’s tone during his Deep Purple era — strong mids, a thick single coil voice.

Construction & Features:

• Radiant Field Barrier system: Metallic barriers surround the coil and magnets to reduce 60-cycle hum (i.e. mains hum) without resorting to true humbucking.
• Lace Micro Combs®: Instead of traditional bobbin sides, these micro combs help in balancing string response and extending harmonic content.
• Generates 36 separate magnetic “sensing” fields along the string contact area, improving sensitivity, harmonic richness, and dynamic response.

Electrical / Physical Specs:

• DC Resistance: ~ 7.1 kΩ
• Peak Frequency: About 3000 Hz
• Inductance: ~ 3.38 Henries

Intended primarily for middle or neck positions, though users sometimes use it in bridge for more output or to balance volumes.

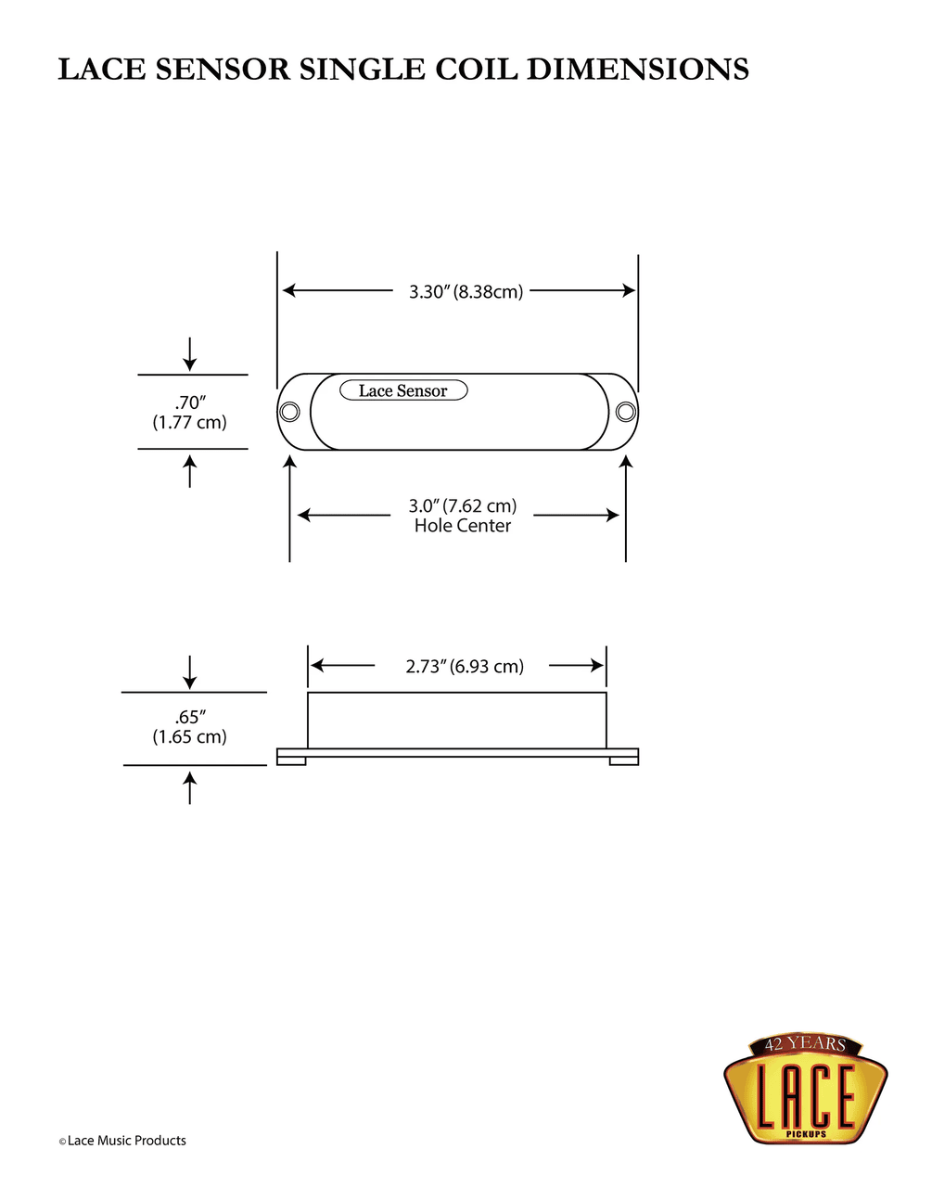

Physical Dimensions & Fit:

• Standard single-coil size / Strat-style format.
• When measuring clearance (string to pickup height), optimum height is about .170" (bottom of string to top of pickup surface) for best tone and output.
